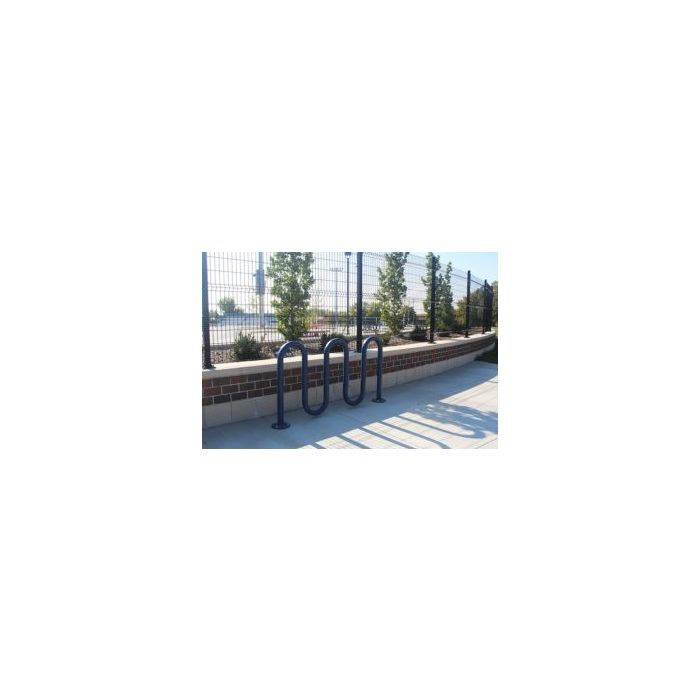

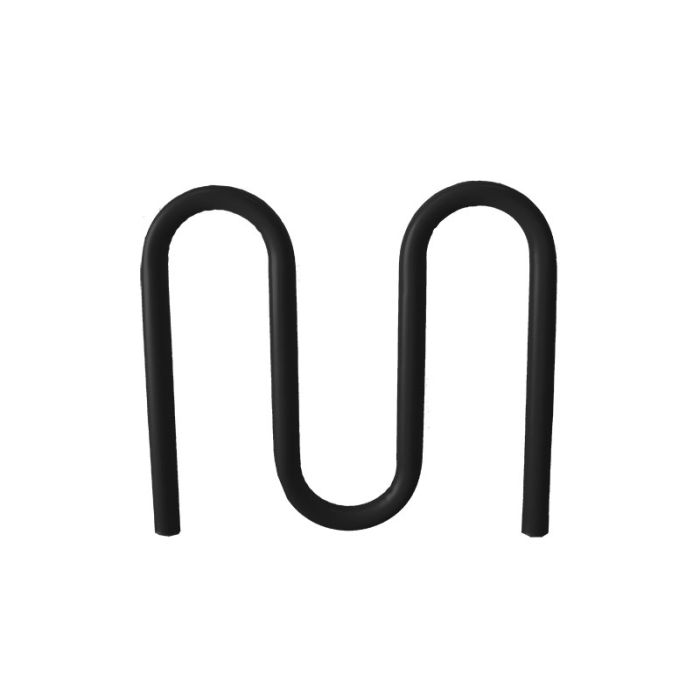

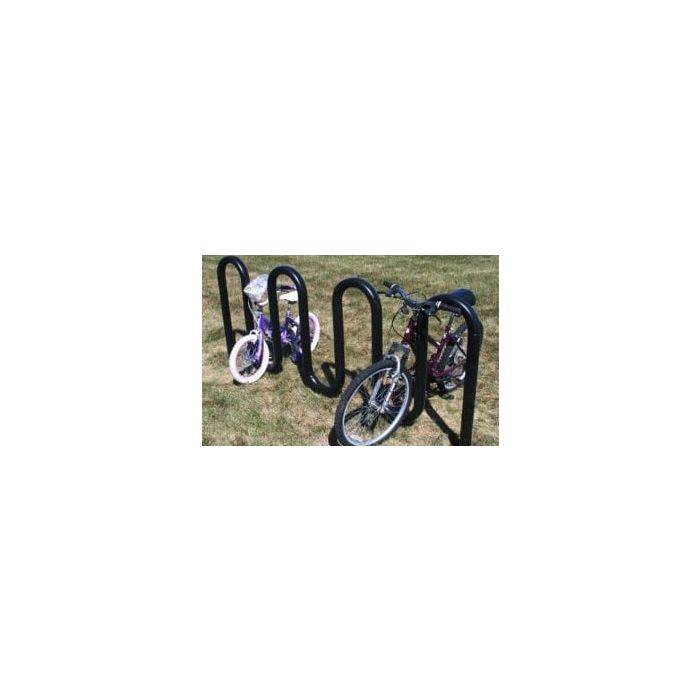

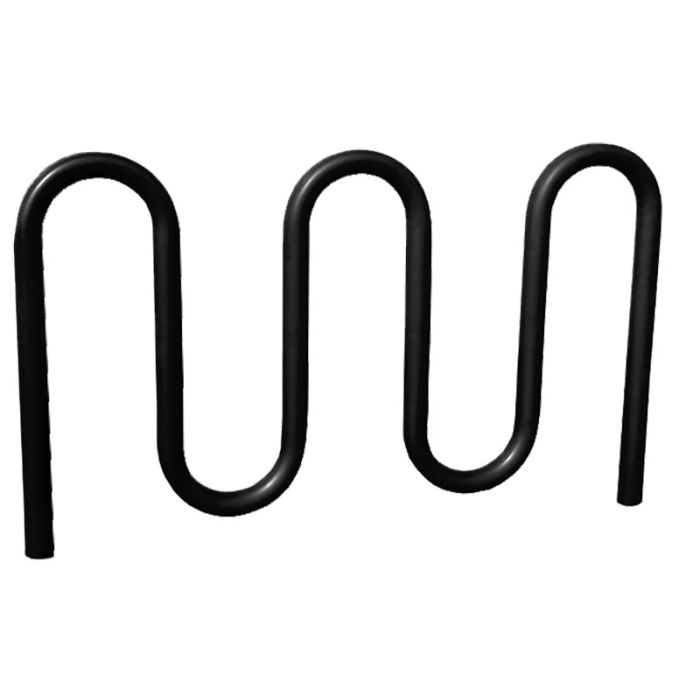

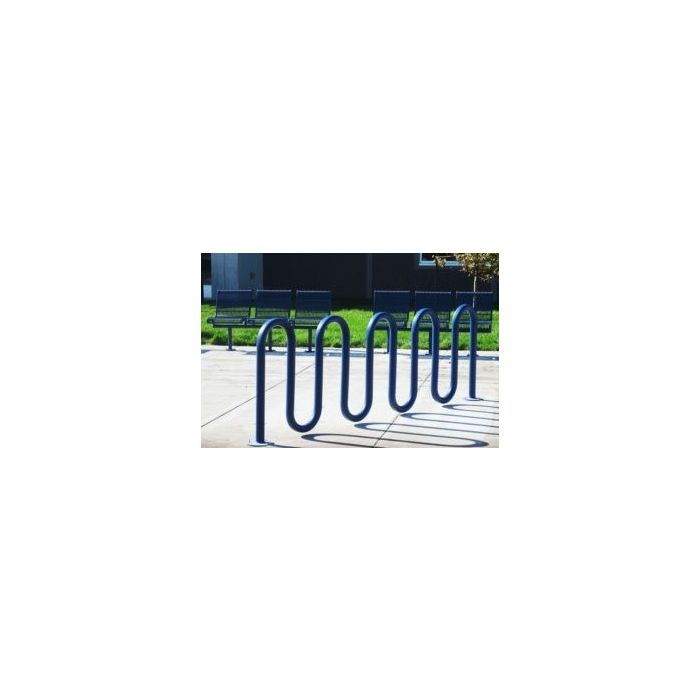

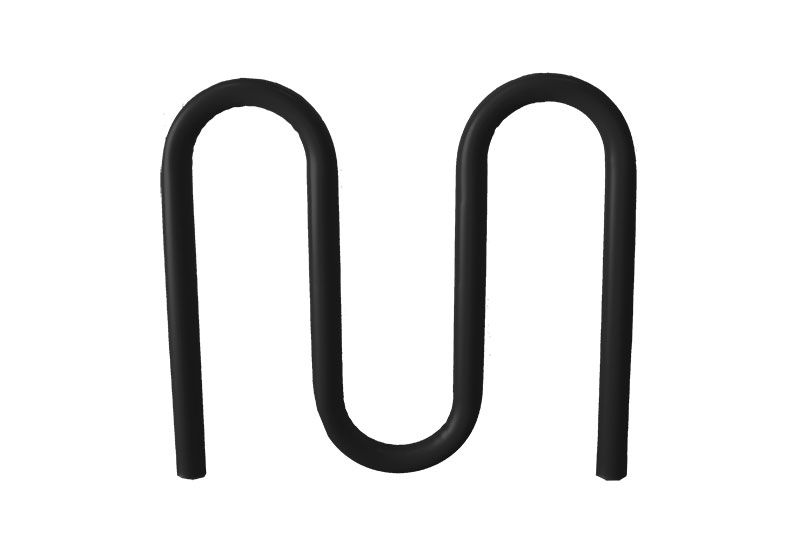

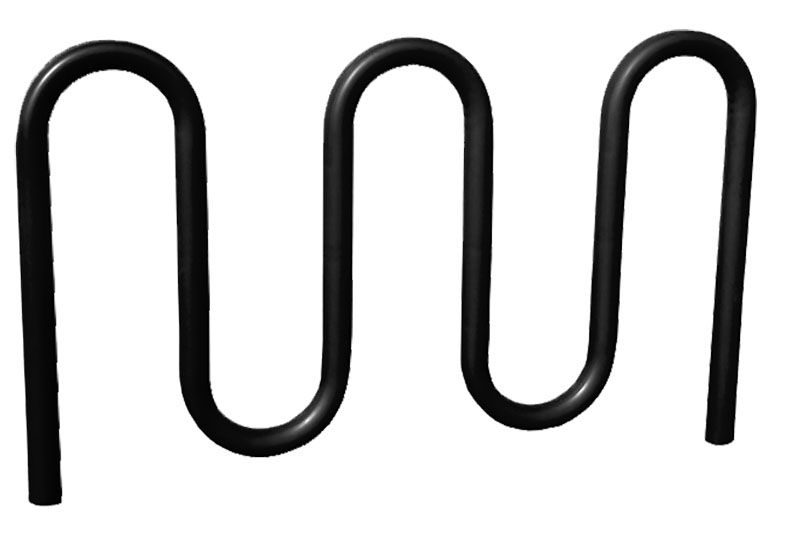

Loop Style Bike Rack

Model 14BR-997L
Starting at$249.95

Choose loops, mount and coating color to continue.

No assembly is needed with our contract-grade stands! Our heavy-duty wave-style bike racks are a no-assembly, space-saving solution! Furthermore, the one-piece design features sturdy Sch 40 pipe that is completely coated with 1/8+ inch UV stable, mold-resistant plastisol. For this reason, you will never need to deal with rust! Rain and snow are sealed out for good. This is why we can offer a 20-year warranty! Choose between surface and in-ground mounts.

Key Features

  • Space-saving bike rack design
  • Plastisol coating protects bicycles from scratching as well as protects the metal post from rusting
  • No assembly needed - comes ready to mount in-ground or on concrete
  • Plastisol won't chip like paint will, so you will never need to paint it!

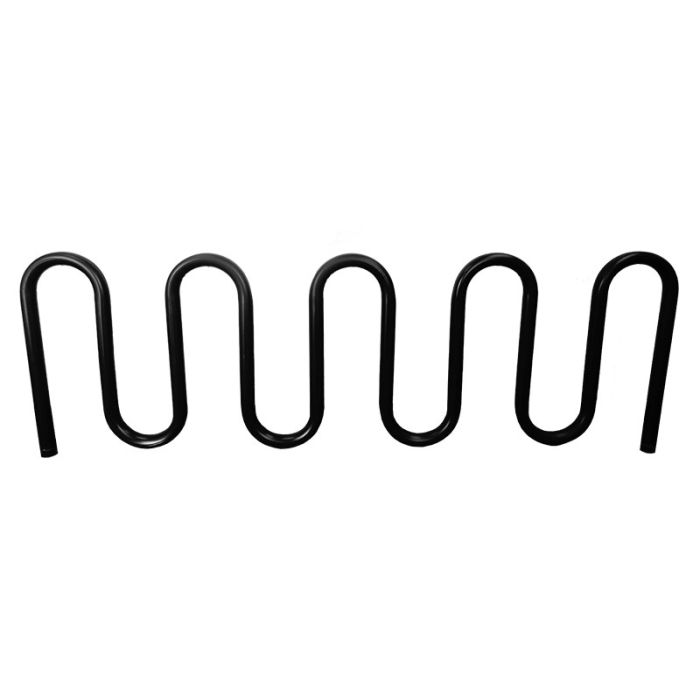

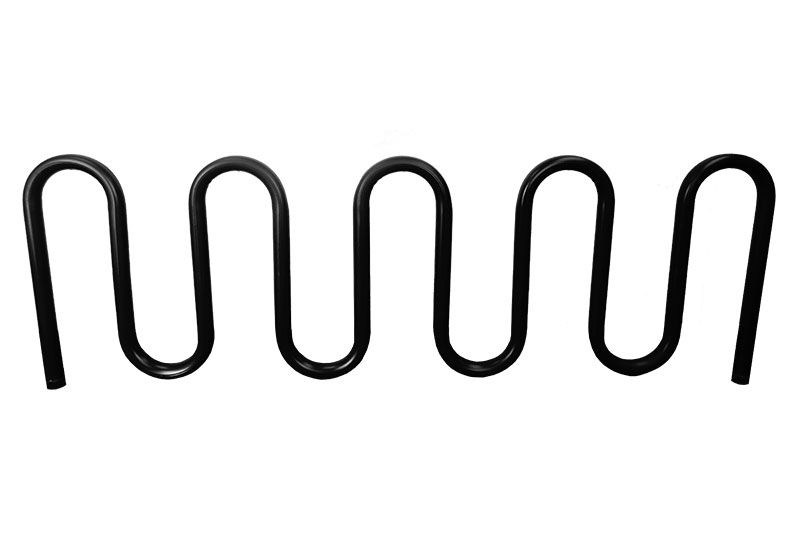

The length of the 5-loop bike rack is 116", and the height is 38". Choose either the direct bury (in-ground) mount or the surface mount. Both styles ship in one piece.

In-Ground Directions:

  1. Use the bike rack to locate where the holes are needed
  2. Drill holes in the ground
  3. Support the bike rack in the holes and fill the holes with concrete
  4. Remove the supports after the concrete has been set.

Surface Mount Directions:

  1. Drill plastic out of the mounting holes with a 7/16" diameter drill bit
  2. Position the bike rack where desired
  3. Secure to the surface with the appropriate fasteners

Made of 2" (ID) schedule 40 pipe that is 2-3/8" OD prior to coating. Surface Mount base plates made of 8" diameter 3/16" HR steel plate which is solidly welded to loop. Direct Bury 1/4" HR steel cross rods are welded on pipe below grade to impede movement in a poured concrete foundation. All above are coated with UV and fungus resistant plastisol to a thickness of 1/8".

The Premier 20-Year Warranty

The manufacturer, because of its very high-quality standards and superior design and materials, is pleased to provide a twenty-year limited warranty on all of its standard products from the date of purchase by the original user. Although our limited warranty applies to normal wear and our poly-vinyls are very fade resistant, we cannot warrant against natural fading due to sunlight. This warranty is based upon the product being used as per its originally designed purpose, and specifically excludes any failure that is caused by misuse, neglect, accident, or improper maintenance. The manufacturer will repair or replace, on a prorated basis, all parts which fail to perform under the circumstances outlined above. All freight and installation charges are to be paid by the user.
